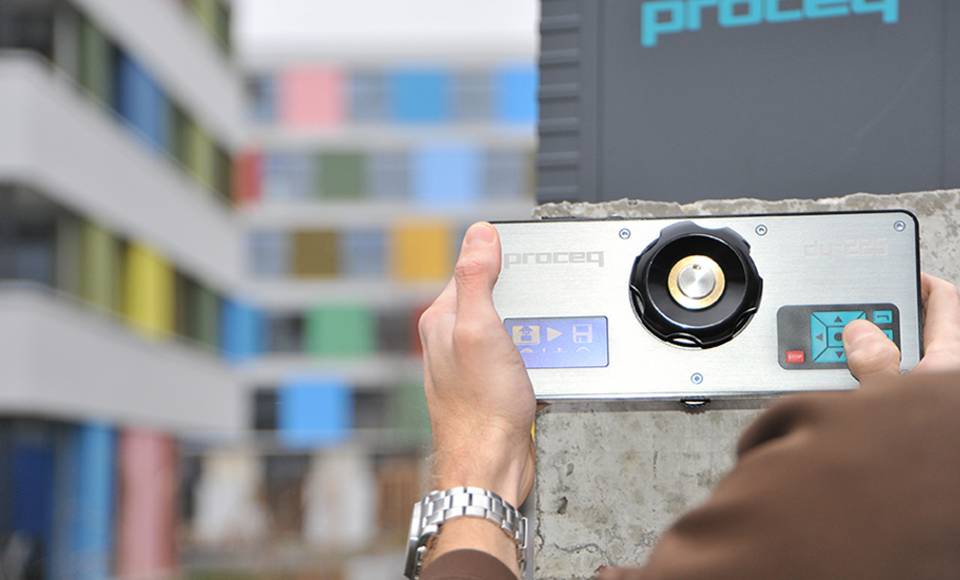

Proceq DY2 Pull off Testers

The Proceq DY-2 Family of automated pull-off testers covers the complete range of pull-off applications with unmatched ease of operation and a unique capability to store a complete record of the test.
Abbey Spares Ltd Proceq DY2 Pull off Testers

Proceq DY-2 Pull off Testers

Pull-off testing is one of the most widely used test methods in the construction industry. This is reflected in the huge number of standards dedicated to the method.

It has long been known that one of the major influences on the result of a pull-off test is the operator influence in the application of a constant load rate. The Proceq DY-2 with its integrated, feedback controlled motor removes this variable completely, by providing a fully automated test at a constant load rate which can be verified.

The Proceq pull off tester measures the adhesive strength of applied coatings e.g. plastic or concrete coatings, mortars, plasters, bituminous coats
Determining the surface strength of concrete and other materials
The pull off tester is ideal for the evaluation of tensile strength in concrete renovation

Click on the PDF to download a copy

Click on the PDF to download a copy
Download PDF of Proceq DY2 Pull off Testers

Features:

The Proceq DY-2 is further unique in that it records every single test parameter required by the specification.

  • Time and date of the test
  • Test disc size
  • Maximum load applied
  • Automatic calculation of bond strength
  • Applied load rate with graphical record
  • Complete time of test
  • Failure mode

    • Application:

  • The pull off tester measures the adhesive strength of applied coatings e.g. plastic or concrete coatings, mortars, plasters, bituminous coats
  • Determining the surface strength of concrete and other materials
  • The pull off tester is ideal for the evaluation of tensile strength in concrete renovation

    • Product Variations:

  • DY-206 has increased accuracy for low strength applications such as testing adhesive strength of mortars and renders.
  • DY-216 covering most applications.
  • DY-225 for very high strength applications such as testing of fibre reinforced polymers bonded to concrete structures or testing the bond strength of repair and overlay materials.
  • Pull off tester Dyna Estrich is specially designed to measure the adhesive strength of floor coatings.

    • Standards:

  • EN 1542
  • EN 1015-12
  • EN 1348
  • ISO 4624
  • BS 1881
  • Part 207
  • ASTM D 4541
  • ASTM C 1583
  • ASTM D 7234-05
  • ASTM D 7522
  • ZTV-SIB 9

    •

    # Working Range Tensile Force Test Disc Ø 50mm
    1 DY-206 0.6 – 6 kn
    135 – 1349 Ibf    		 0.3 – 3.1 MPa
    44 – 443 psi
    2 DY-216 1.6 – 16 kn
    360 – 3597 Ibf    		 0.81 – 8.1 MPa
    118 – 1182 psi
    3 DY-225 2.5 – 25 kN
    562 – 5620 Ibf
    		1.3 – 12.7 MPa
    185 – 1847 psi
